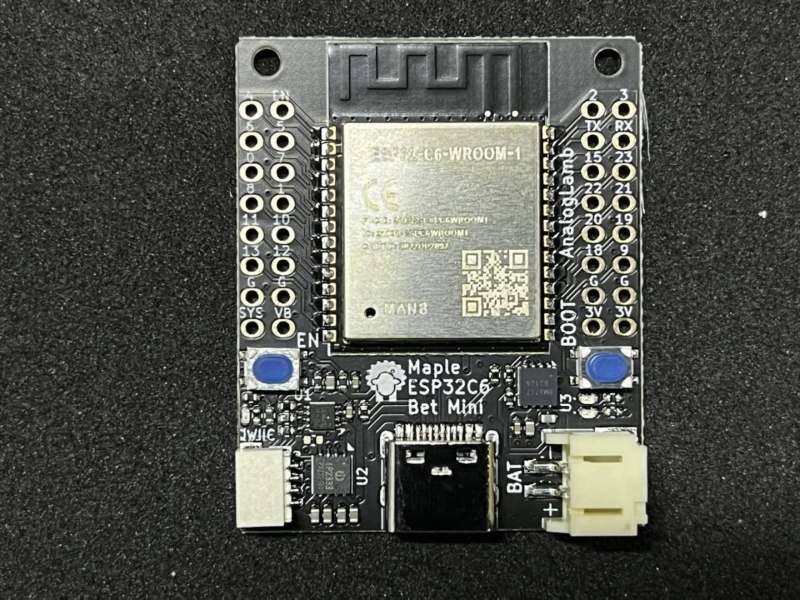

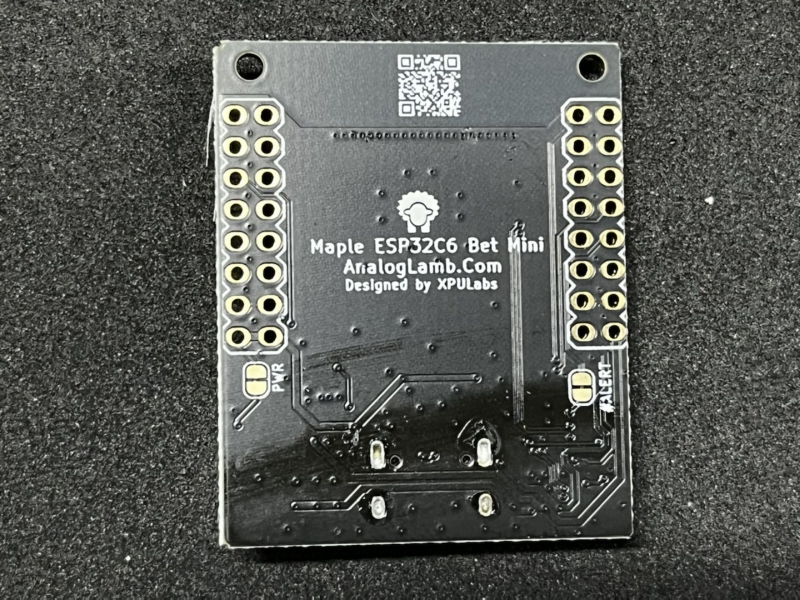

Maple ESP32C6 Bet Mini Breakout – Low Power RISC-V ESP32C6 Board

Overview

ESP32-C6 is Espressif’s first Wi-Fi 6 SoC integrating 2.4 GHz Wi-Fi 6, Bluetooth 5 (LE) and the 802.15.4 protocol. ESP32-C6 achieves an industry-leading RF performance, with reliable security features and multiple memory resources for IoT products. It consists of a high-performance (HP) 32-bit RISC-V processor, which can be clocked up to 160 MHz, and a low-power (LP) 32-bit RISC-V processor, which can be clocked up to 20 MHz. It has a 320KB ROM, a 512KB SRAM, and works with external flash. It comes with 30 (QFN40) or 22 (QFN32) programmable GPIOs, with support for SPI, UART, I2C, I2S, RMT, TWAI, PWM, SDIO, Motor Control PWM. It also packs a 12-bit ADC and a temperature sensor.

Features

• ESP32-C6 embedded, 32-bit RISC-V,single-core microprocessor, up to 160 MHz
• A low-power (LP) 32-bit RISC-V processor, up to 20 MHz
• ROM: 320 KB, HP SRAM: 512 KB, LP SRAM: 16 KB
• Support 2.4 GHz Wi-Fi 6, Bluetooth 5 (LE) and the 802.15.4 protocol
• Support for SPI, UART, I2C, I2S, RMT, TWAI, PWM, SDIO, Motor Control PWM
• A 12-bit ADC and a temperature sensor.

Specifications

• ESP32-C6-WROOM-1 Module with 4MB or 8MB Flash
• Headers for All Avaiable PINs
• USB Type-C connector as Power Supply & Debug Interface
• MAX17048 for Battery Fuel Gauge
• Battery Charger with Power Path
• Buttons for EN & BOOT
• DC-DC: Output 3.3V@Max 1A
• Dimension: 40 x 33 x 5 mm

User Guide

Examples

TBD

Buy it Now

AnalogLamb.Comopen in new window

Resources

Documents

ESP32-C6-WROOM Datasheet

Schematic

Codes

Github – ESP-IDF
Github – ESP-RS
